You are buying on 100% Brand New of:

EPMAN 100SETS Or 50SETS/Carton C Type PP SP PF SF PH SH PM SM 10 20 30 40 Pneumatic Connector Rapidities for Air Hose Coupling Compressor Accessories Quick Release Fitting EPAA32G04

**** Sold in Carton,Quantity per carton: 100 Sets ( Model Series: SP,PP,SM,PM,SH,PH,SF,PF ) ****
**** Sold in Carton,Quantity per carton: 50 Sets ( Model Series: SP+PP,SM+PM,SH+PH,SF+PF ) ****

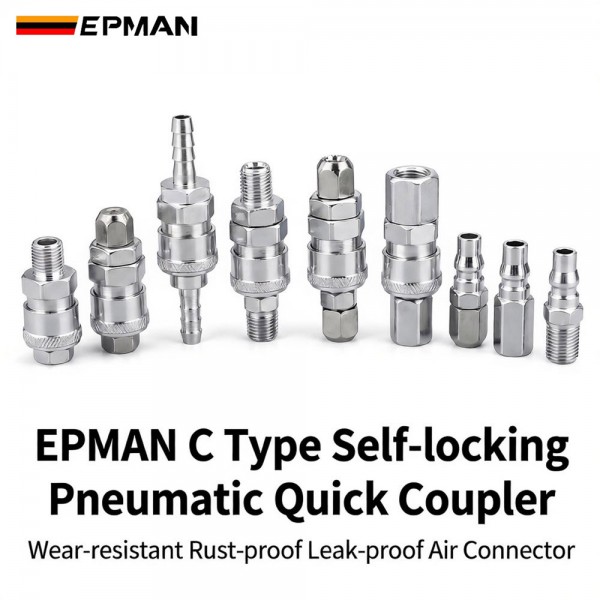

Upgrade your pneumatic systems with the EPMAN C-Type Self-locking Pneumatic Quick Coupler. Engineered for heavy-duty industrial applications, this air line connector ensures high efficiency and maximum safety. Ideal for air compressors, pneumatic tools, and automated manufacturing lines.

Product Features:
Leak-Proof Performance: Precision-machined sealing structure completely eliminates air loss, maintaining optimal system pressure.
Smooth 360° Swivel: Reduces hose twisting and fatigue for the mechanic during extended tool use.
Wear-Resistant & Rust-Proof: Constructed from high-grade, chrome-plated iron to resist corrosion and endure harsh working environments.
Quick Release Connection: Connect and disconnect air hoses in seconds without any secondary tools.
Withstands working pressure up to 0.9MPa (130PSI), meets the operation requirements of most industrial pneumatic tools.
Suitable for all kinds of connections in compressed air systems, such as air compressors and pneumatic tools, ensuring efficient and air-tight connections.
Multiple specification options available to match different air tube sizes and thread standards, covering most common pneumatic application scenarios As a general pneumatic connection accessory, this quick connector balances performance and cost, delivering stable leak-proof connection for long-term use, and is trusted by industrial and DIY users worldwide.

Specification:
Product Name: C-Type Self-Locking Pneumatic Quick Coupler
Material: Premium Iron with Chrome Plated Coating

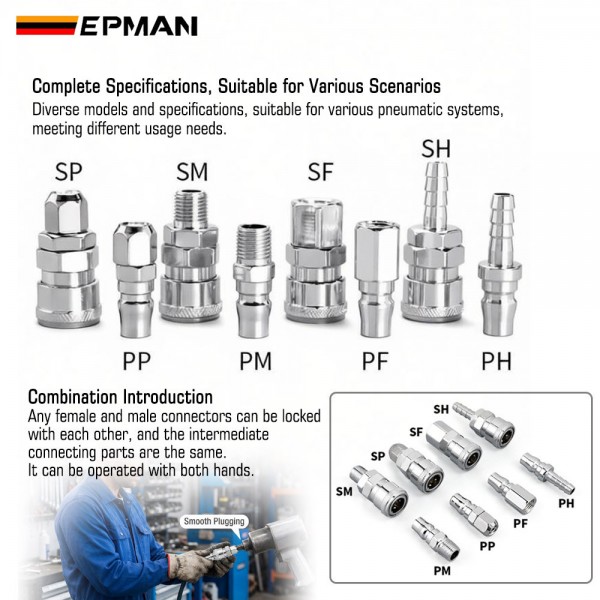

Model Series: SP,PP,SM,PM,SH,PH,SF,PF,SP+PP,SM+PM,SH+PH,SF+PF
Size: 20,30,40 (1/4", 3/8", 1/2" Thread or Barb Option)
Working Fluid: Clean Compressed Air, Vacuum
Max Operating Pressure: 1.32Mpa (13.5kgf/cm²)
Normal Working Pressure: 0-0.9Mpa (0-9.2kgf/cm²)
Operating Temperature Range: 0 - 60°C (32 - 140°F)
Applicable Hose: Polyurethane (PU) Tube, Nylon Tube, Rubber Braided Hose

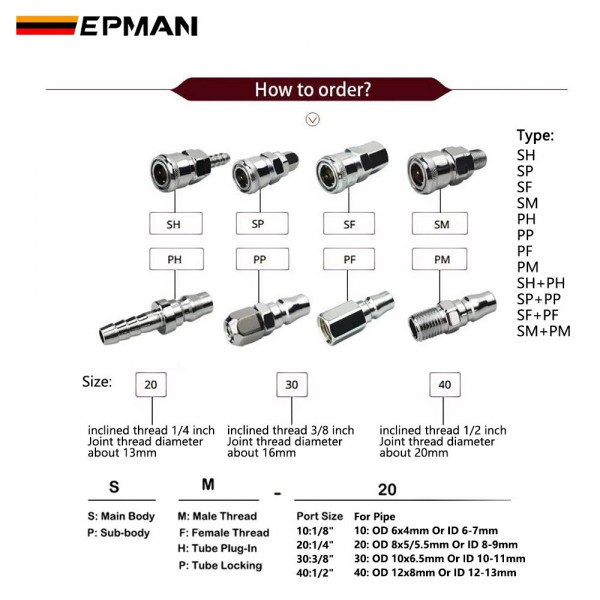

Model Specification
Series		I.D. of thread (mm)	Thread size	Note
SF/ PF series	SF-20/ PF-20/ SF+PF-20	About 13mm	1/4 inch	The thread has inclination
	SF-30/ PF-30/ SF+PF-30	About 16mm	3/8 inch
	SF-40/ PF-40/ SF+PF-40	About 20mm	1/2 inch
SM/ PM series	SM-20/ PM-20/ SM+PM-20	About 13mm	1/4 inch	The thread has inclination
	SM-30/ PM-30/ SM+PM-30	About 16mm	3/8 inch
	SM-40/ PM-40/ SM+PM-40	About 20mm	1/2 inch

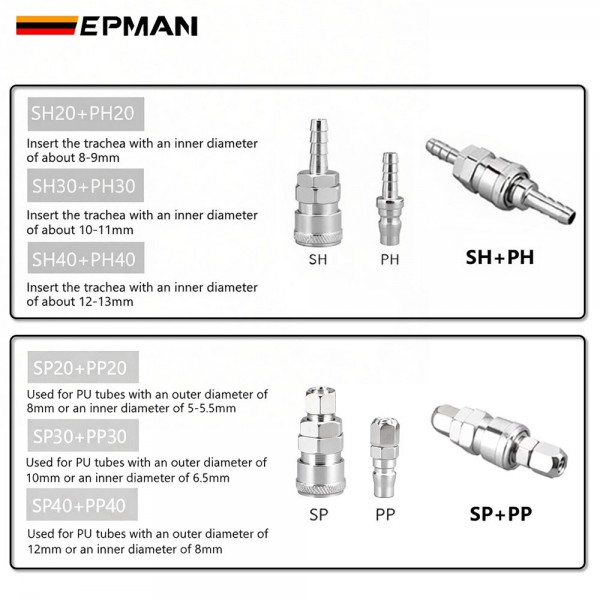

		I.D. of inserted tube (mm)		Note
SH/ PH series	SH-20/ PH-20/ SH+PH-20	8~9		Mainly for inserting the trachea
	SH-30/ PH-30/ SH+PH-30	10~11
	SH-40/ PH-40/ SH+PH-40	12~13
		O.D. of inserted tube (mm)	I.D. of inserted tube (mm)	Note
SP/ PP series	SP-10/ PP-10/ SP+PP-10	6	4	Used for PU Tubes
	SP-20/ PP-20/ SP+PP-20	8	5 or 5.5
	SP-30/ PP-30/ SP+PP-30	10	6.5
	SP-40/ PP-40/ SP+PP-40	12	8

Application:
Perfect for industrial automation equipment, factory air line systems, air compressors, automotive repair shops, pneumatic impact wrenches, spray guns, and general pneumatic piping tools.
Widely used in DIY home garages, woodworking air tools, commercial vehicle maintenance, automated production lines, laboratory air supplies, and pneumatic machinery setups.

Package Included:
50 Or 100 x C-Type Pneumatic Quick Couplers (Same Model per Carton Box,Refer to the selected option)

FAQ:
Q1: Can these couplers be used in European or American style systems?
A1: No, these are strictly Japanese Standard C-Type couplers and will not fit EU/US style plugs.
Q2: Does the male plug have an automatic shut-off valve when disconnected?
A2: No, the female socket has the shut-off valve to stop airflow; the male plug is an open-through design.
Q3: Is the self-locking system secure under sudden pressure drops?
A3: Yes, the mechanical self-locking sleeve holds the plug firmly until manually pulled back.
Q4: How does the chrome plating protect the product?
A4: The chrome layer provides a hard shield that prevents oxidation, rust, and surface scratches in humid workshops.
