EPMAN Centerfeed Intake Manifold - Cast Aluminum + CNC, 90mm Opening, Silver or Black, FOR K20/K24 & K-Swap EPAA09G32

Product in category: Air Intake System - Intake Manifold

EPMAN Centerfeed Intake Manifold - Cast Aluminum + CNC, 90mm Opening, Silver or Black, FOR K20/K24 & K-Swap EPAA09G32

Stock: In Stock
Reward Points: 164
Model: EPAA09G32
Weight: 12.00kg
Dimensions: 58.00cm x 38.00cm x 23.00cm

Based on 0 reviews. - Write a review

$164.00

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

You are buying on 100% Brand New of:

EPMAN Centerfeed Intake Manifold - Cast Aluminum + CNC, 90mm Opening, Silver or Black, FOR K20/K24 & K-Swap EPAA09G32

**** Quantity per carton: 2 Sets ****

Product:

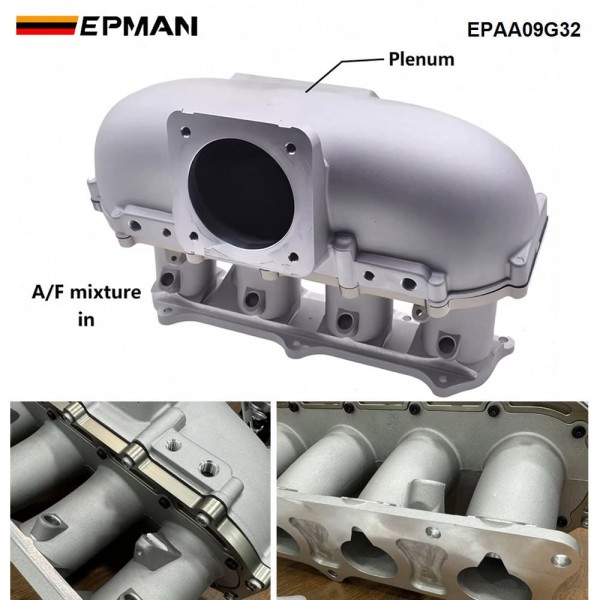

Centerfeed Design - Balanced, Short-Path Airflow The throttle body mounts at the top-center of the plenum, feeding all four cylinders through short, equal-length paths - less restriction, better high-rpm distribution.

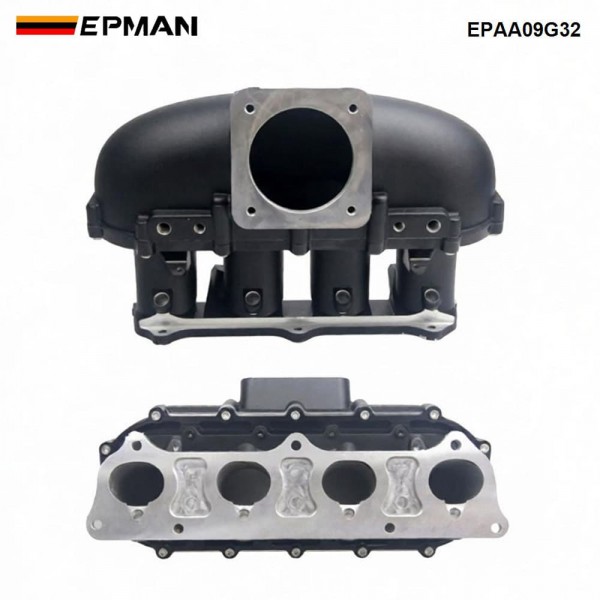

Cast Aluminum with CNC-Finished Ports - Precision Where It Matters A cast aluminum body with CNC-machined ports delivers precise port geometry and a smooth internal surface - cast structure strength with machined accuracy.
K-Series & K-Swap Ready - Built for the Platform Designed for K20/K24 engines and the K-Swap community - the most popular Honda performance platform worldwide.
Pair the EPMAN centerfeed manifold with our 90mm throttle body and coolant adapter for a complete K-series intake upgrade - matched components, shipped from the same warehouse.

Specification:
Product Type: Centerfeed Ultra Race Style Intake Manifold
Type: k swap intake manifold
Plenum Volume: 5.0L (Optional Billet Aluminum Plenum Spacers available in 1L or 2L sizes)
Throttle Body Opening: 90mm, Standard For 5.0L Ford Pattern
Runners: 6.0" Tapered High-Velocity Runners with 87mm Raised Velocity Stacks
Material: High-grade aluminum with generously cast runner walls for porting(CNC Finished)

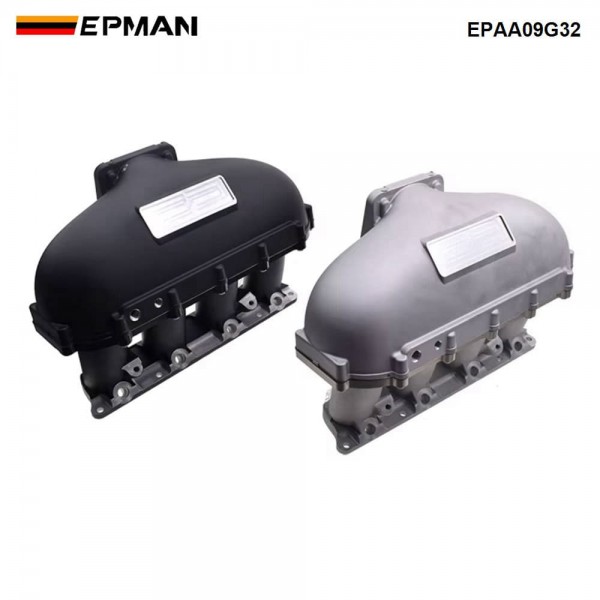

Color:Silver / Black (Anodized / Powder Coated)
Accessory: 3 x 1/8" NPT and 3 x 1/4" NPT
OE No. (Reference): 12030PNC000
Engine Fitment: K20A / K20A2 / K20Z1 / K20Z3 / K24A / K24A2

Application:
Engine Compatibility: For Honda K-Series K20 / K24 engines & K-Swap builds
Compatible Vehicles:
For Acura RSX Type-S (K20A2): 2002–2006
For Acura RSX (K20Z1): 2005–2006
For Honda Civic Si (K20Z3): 2006–2011
For Honda Civic Si EP3 / Acura RSX (K20A): 2002–2005
For Acura TSX / Honda Accord CL9 (K24A / K24A2): 2004–2008 - coolant adapter may be required
For K-Swap Builds (EK / EG / DC2 / DC5 / EP3 / FA5 / FG2): Confirm with your setup

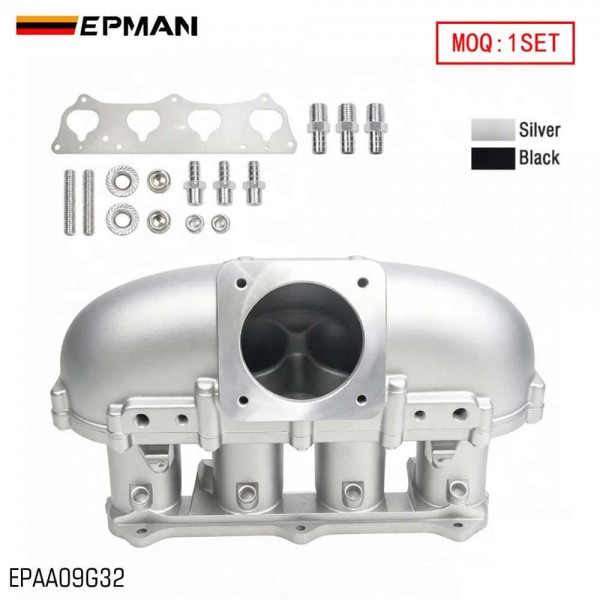

Package Included:
1 x Intake Manifold (Cast Aluminum + CNC, Silver or Black)
1 x Spacer (installation spacer)
All accessories as pictured
Throttle body, fuel rail & injectors NOT included

Feature Comparison:

Feature	EPMAN Cast Aluminum + CNC	Plain Cast Aftermarket	Factory Plastic Manifold
Port Precision	★★★★★ CNC-finished ports	★★★☆☆ Casting tolerances vary	★★★☆☆ Molded
Internal Surface Finish	★★★★★ Smooth, machined	★★★☆☆ Rough spots possible	★★★★☆ Smooth
Strength & Rigidity	★★★★★ Heat-treated cast aluminum	★★★★☆ Good	★★★☆☆ Brittle over time
Heat Resistance	★★★★★	★★★★☆	★★★☆☆ Warp risk
Weight	★★★★☆ Lightweight	★★★☆☆	★★★★★ Lightest
High-RPM Airflow	★★★★★ Centerfeed + 90mm	★★★☆☆ Stock-flow limited	★★☆☆☆ Restrictive
Cost Efficiency	★★★★★ Cast + targeted CNC	★★★★☆	★★★☆☆

FAQ:
Q1: What engines does this fit?
A1: Fit K20A / K20A2 / K20Z1 / K20Z3 / K24A / K24A2 - RSX, Civic Si, TSX / Accord CL9 and K-Swap builds. Verify your engine code.
Q2: Do I need to buy a throttle body separately?
A2: Yes - the manifold has a 90mm opening (Ford 5.0 bolt pattern); the throttle body is sold separately.
Q3: Does this fit CR-V / Element?
A3: Not directly - K24 applications require a coolant adapter (e.g. K-Tuned type), which is not included.
Q4: Is this a genuine Skunk2 product?
A4: No - this is an EPMAN Ultra Race Style (centerfeed) design, not a Skunk2-branded product.
Q5: Do I need a tune after installation?
A5: A tune is strongly recommended to take advantage of the larger plenum and 90mm opening - especially for race and turbo builds.
Q6: What is the MOQ and can you do OEM packaging?
A6: Please contact us with your target quantity and market - custom packaging and private label are supported.

WHOLESALE & OEM SERVICES

Wholesale MOQ? Custom finishes? Contact us for OEM/ODM solutions, bulk pricing & sample processing.
Our Factory Specializes In :
• CNC Precision Manufacturing • Custom Design & Development
• Private Label Solutions • Bulk Order Processing
• Sample Production & Testing
BULK ORDER BENEFITS :
• Competitive Wholesale Pricing • Custom Branding Options
• Priority Production Scheduling • Dedicated Account Management
• Flexible Payment Terms

FINAL DISCLAIMER

IMPORTANT :
• All items are Brand New unless stated otherwise on the listing
• We sell DIY (Do It Yourself) Items with professional installation strongly recommended
• We take no responsibility in teaching you how to install
• Professional installation is strongly recommended for optimal performance and safety
• Verify vehicle fitment before purchase – Contact us with your VIN for free verification
• No ECU tuning required – Plug and play installation
• Basic hand tools required – Not included in package

EPMAN – We Only Sell Style, Quality, and Original Brand Excellence.

Technical
Item Name	Centerfeed Ultra Race Style Intake Manifold
Material	Cast Aluminum (CNC Finished)
Color	Silver / Black (Anodized / Powder Coated)
OEM	12030PNC000
Type	k swap intake manifold
Engine	K20A / K20A2 / K20Z1 / K20Z3 / K24A / K24A2
