Product in category: ENGINE PARTS - Turbocharge
EPMAN Vehicle Racing Car Turbo Turbocharge
- Stock: In Stock
- Reward Points: 100
- Model: Turbocharge
- Weight: 12.00kg
$100.00
You are buying on 100% Brand New of:
EPMAN Vehicle Racing Car Turbo Turbocharger
**** Quantity per carton : 2 PCS ****
Click here to download our turbo catalog.
| EPMAN Part No. | Turbo Model | Description |

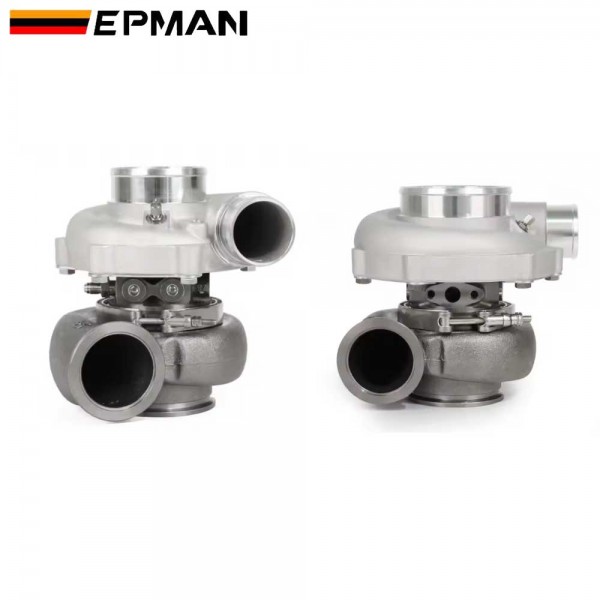

| EPAA33G001 | G30-770 | Part Number：880704 Turbo PN：880704-5005S,880704-5006S Turbine Part Numbe：740902-0089,740902-0088,740902-0087,740902-0086,740902-001,740902-0090,740902-0092,740902-0100,740902-0101,740902-0096,740902-0097,740902-0098,740902-0099 SuperCore Part Number：880693-5002S,880694-5002S Turbo Model：G30-770 Displacement：2.0L - 3.5L HP：475/770 RPM Max：3000 Compressor Wheel Exducer: 71mm Compressor Wheel Inducer: 58mm Compressor Wheel Trim: 65 Compressor Wheel A/R 0.72 Turbine Wheel Exducer: 55mm Turbine Wheel Inducer: 60mm Turbine Wheel Trim 84 Turbine Wheel A/R 0.61 Bearing Type ：Ceramic Ball Bearing Bearing Housing： Water Cooled |
| EPAA33G002 | G30-660 | Part Number： 880704 Turbo PN：880704-5002S,880704-5003S Turbine Part Number：740902-0100,740902-0101,740902-0096,740902-0097,740902-0098,740902-0099 SuperCore Part Number 880694-5001S Turbo Model：G30-660 Displacement：2.0L - 3.5L HP：350/660 RPM Max：3000 Compressor Wheel Exducer: 67mm Compressor Wheel Inducer: 54mm Compressor Wheel Trim: 65 Compressor Wheel A/R 0.7 Turbine Wheel Exducer: 55mm Turbine Wheel Inducer: 60mm Turbine Wheel Trim 84 Turbine Wheel A/R 0.83, 1.01, 1.21 Wastegate Internal and External |

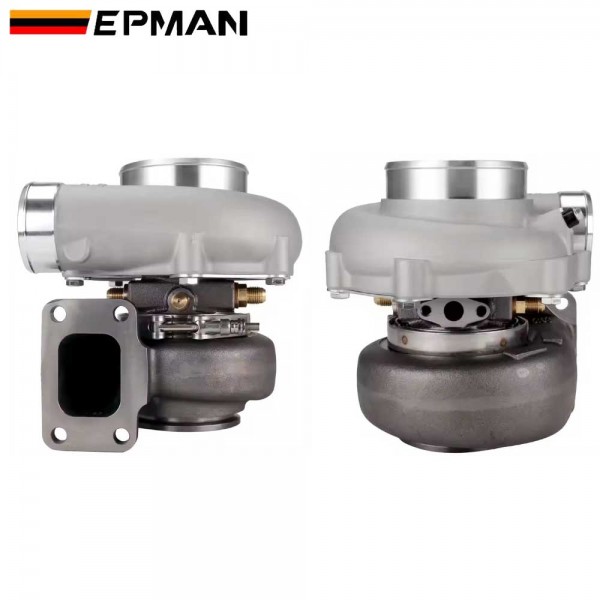

| EPAA33G003 | G30-900 | Part Number: 880704 Turbo PN: 880704-5008S,880704-5009S Turbine Part Number: 740902-0089,740902-0088,740902-0087,740902-0086,740902-0091,740902-0090,740902-0092,740902-0100,740902-0101,740902-0096,740902-0097,740902-0098,740902-0099 SuperCore Part Number: 880693-5003S,880694-5003S Turbo Model: G30-900 Displacement: 2.0L - 3.5L HP: 550/900 RPM Max: 145000 RPM Compressor Wheel Exducer: 76mm Compressor Wheel Inducer: 62mm Compressor Wheel Trim: 65 Compressor Wheel A/R: 0.72 Turbine Wheel Exducer: 55mm Turbine Wheel Inducer: 60mm Turbine Wheel Trim: 84 Bearing Type: Ceramic Ball Bearing Bearing Housing: Water Cooled |

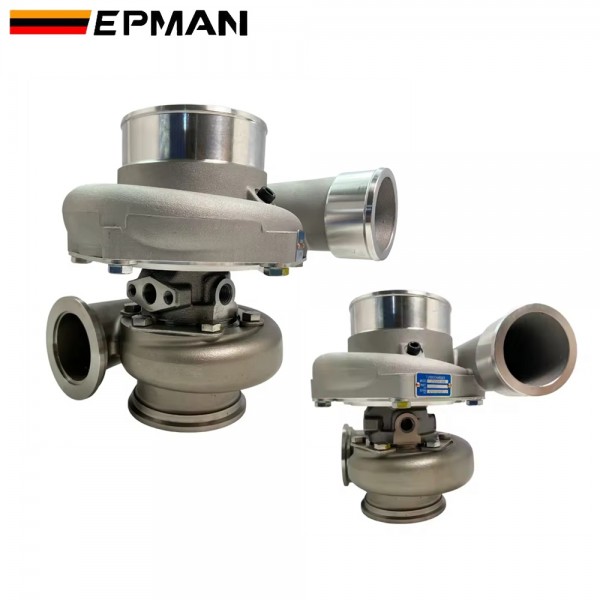

| EPAA33G004 | GTX3582R GT3582R Gen1 Gen 2 | Turbo Model: GTX3582R GT3582R Gen1 Gen 2 Compressor Housing A/R: 0.72 Turbine Housing A/R: 0.63 / 0.82 / 1.06 Turbine housing material Si-mo Nodular iron cast, or heat-resistance stainless steel, different price Cooled: Water & Oil cooled Bearing: Ceramics Dual Ball bearing modified journal bearing Inlet / Outlet Flange Hot: T3/4 Bolt, T3/V Band, T4/V Band Compressor Wheel: Aluminum cast alloy, Billet wheel, Color Billet wheel |
| EPAA33G005 | GTX3582R Gen2 | Part Number: 856801-5067S Assembly Kit Number: 856801-5067S,856801-5068S,856801-5069S,856801-5070S,856801-5071S,856801-5079S,856801-5080S,856801-5081S Turbine Part Number: 740902-0010,740902-0011,740902-0012,740902-0016,740902-0017,740902-0018,740902-0031,740902-0032,740902-0033 SuperCore Part Number: 851154-5004S Turbo Model: GTX3582R Gen2 Displacement: 2.0 - 4.5L HP: 450 - 900 Compressor Wheel Exducer: 82MM Compressor Wheel Inducer; 66MM Compressor Wheel Trim; 64 Compressor Wheel A/R; 0.7 Turbine Wheel Exducer; 62MM Turbine Wheel Inducer; 68MM Turbine Wheel Trim; 84 |
| EPAA33G006 | GTX2867R GEN II | Part Number: 856800-5005S Assembly Kit Number: 856800-5005S,856800-5006S,856800-5007S,856800-5008S Turbine Part Number: 827690-0001,827690-0002,827690-0003,827690-0004 SuperCore Part Number: 849894-5002S Turbo Model; GTX2867R GEN II Displacement: 1.4L - 2.5L HP: 275 - 550 RPM Max: 145000 Compressor Wheel Exducer: 67MM Compressor Wheel Inducer: 50MM Compressor Wheel Trim: 55 Compressor Wheel A/R: 0.6 Turbine Wheel Exducer: 47MM Turbine Wheel Inducer: 54MM Turbine Wheel Trim: 76 |
| EPAA33G007 | GTX3584RS Gen2 | Part Number: 856804-5001S Assembly Kit Number: 856804-5001S,856804-5002S,856804-5003S,856804-5004S,856804-5005S,856804-5006S Turbine Part Number: 740902-0052,740902-0066,740902-0067 SuperCore Part Number: 846098-5001S,846098-5002S Turbo Model: GTX3584RS Gen2 Displacement: 2.0 - 5.5 L HP: 550 - 1000 Compressor Wheel Exducer: 84MM Compressor Wheel Inducer: 67MM Compressor Wheel Trim: 64 Compressor Wheel A/R: 0.72 Turbine Wheel Exducer: 62MM Turbine Wheel Inducer: 68MM Turbine Wheel Trim: 84 Turbine Wheel A/R: 0.83 |
| EPAA33G008 | G35-1050 | Part Number: 880707 Turbo PN: 880707-5005S,880707-5006S Turbine Part Number: 740902-0108,740902-0107,740902-0106,740902-0105,740902-0104,740902-0103,740902-0102,740902-0112,740902-0113,740902-0114,740902-0115,740902-0116,740902-0117 SuperCore Part Number: 880695-5002S,880696-5002S Turbo Model: G35-1050 Displacement: 2.0L - 5.5L HP: 700/1050 RPM Max: 145000 RPM Compressor Wheel Exducer: 84mm Compressor Wheel Inducer: 68mm Compressor Wheel Trim: 65 Compressor Wheel A/R 0.75 Turbine Wheel Exducer: 62mm Turbine Wheel Inducer: 68mm Turbine Wheel Trim: 84 Bearing Type: Ceramic Ball Bearing Bearing Housing: Water Cooled |
| EPAA33G009 | G35-900 | Part Number: 880707 Turbo PN: 880707-5002S,880707-5003S Turbine Part Number: 740902-0108,740902-0107,740902-0106,740902-0105,740902-0104,740902-0103,740902-0102,740902-0112,740902-0113,740902-0114,740902-0115,740902-0116,740902-0117 SuperCore Part Number: 880695-5001S,880696-5001S Turbo Model: G35-900 Displacement: 2.0L - 5.5L HP: 550/900 RPM Max: 145000 RPM Compressor Wheel Exducer: 76mm Compressor Wheel Inducer: 62mm Compressor Wheel Trim: 65 Compressor Wheel A/R 0.72 Turbine Wheel Exducer: 62mm Turbine Wheel Inducer: 68mm Turbine Wheel Trim: 84 Bearing Type: Ceramic Ball Bearing Bearing Housing: Water Cooled |
| EPAA33G010 | GT2876R | Compressor Housing： A/R.70 Cooled： Water cooled and oil cooled Turbine Housing： A/R.64, or A/R.86 T25 Flange(Inlet) / 5 bolt(Outlet) Bearing： Journal bearing, or Ceramic Dual ball bearing Compressor Wheel： Aluminum alloy or Billet Wheel Performance Rating： 280-480 HP Recommended Displacement： 1.8 -3.0L OE NO.: 705330-5001S, 705330-5002S, 705330-0001, 705330-0002, 705330-1, 705330-2, 472560-15, 71847-1, 780371-2 |
| EPAA33G011 | T88 - 33D 49174-00890 | Product: Turbo Charger - T88-33D 15.0 EX Housing 80mm Square Flange Part No: 11500305 Model: T88 Compressor Wheel: 33D Exhaust Housing (cm2): 15cm2 Max Boost (kpa): 190 Kpa Manifold Flange Size (mm): 80mm Compressor Cover: IN DIA (mm): 100 / OUT DIA (mm): 70 Power Range: KW: 478~552 / PS: 650~750 Compressor Wheel: IN DIA (mm): 70/OUT DIA (mm): 95 Turbine Wheel: OUT DIA (mm): 72.3 /EX DIA (mm): 85 OE NO.: 49174-00890 Part Number: 1,150,030,511,500,320 |
| EPAA33G012 | GT35 GT3582 GT3582R GTX3582R/T3 | Description: Performance turbocharger Turbo Model: GT35 GT3582 GT3582R GTX3582R Comp. Housing: A/R.70 customization color or anti-surge Comp. Wheel: customization material or size Exhaust Housing: A/R.63, A/R.82 A/R1.06 select inlet/outlet flange and material Inlet/outlet flange: T3 or T4 / 4 Bolt or V Band Turbine Wheel: customization material or size Cooled: Water & oil cooled Wheel Nut: General or color bullet Backing Plate: Plain or Color by anodizing Bearing: Journal bearing or ball bearing, need to check |
| EPAA33G013 | 7875 type | Description: Performance turbocharger Turbo Model: 7875 type Compressor housing: 0.75 A/R Compressor wheel: 6+6 Blades Turbine Housing: 1.32 A/R 0.81, 0.96 Inlet/outlet flange: T4 flange / V Band Cooled: Water & Oil cooled Wheel Nut: General or Golden color bullet Backing Plate: Plain or Color by anodizing |
| EPAA33G014 | GTX3071R | Description: Performance turbocharger OE NO.: 803712-1 Size: standard Car Model: Racing car Turbo Model: GTX3071R Part No: 803712-1 CHRA: 700177-46 Accepted: Small batch and Mass customization Price Range: Mid price with high-quality Sales Pattern B2B, M2C: B2B, M2C |
| EPAA33G015 | GTIII-4R Turbine Turbocharger | Item: Performance turbocharger OE NO.: GTIII-4R, GT3 turbo, 14001-AK033 Size: Standard Size Car Model: for modified vehicle Turbo Model: GTIII-4R Turbine Turbocharger Turbo Flange: T4,2 port Accepted: Small batch and Mass customization Sales Pattern: B2B, M2C A/R: 0.81 WG V-band: Φ99.1 Code No.: 14001-AK033 |

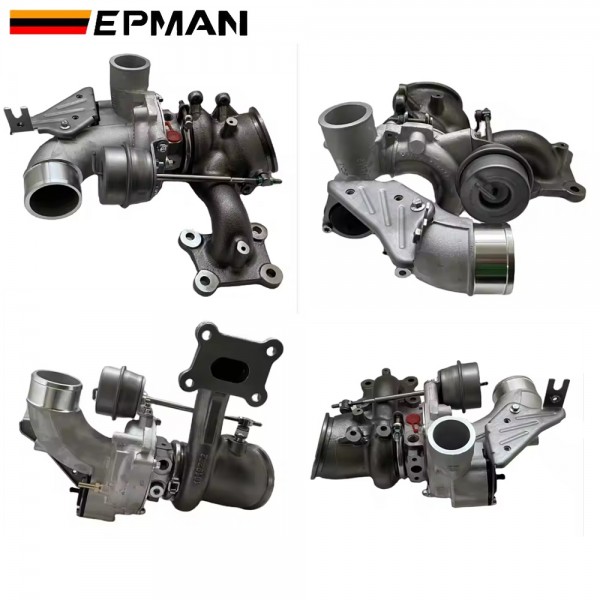

| EPAA33G016 | K03-2080DCB5.88CCAXX, K03 | Part Number: 53039880212 Previous Version: 5303 998 0600, 5303 970 0600, 5303 988 0600, 5303 970 0269, 5303 970 0270, 5303 970 0293, 5303 970 0308, 5303 970 0314, 5303 970 0366, 5303 970 0418, 5303 970 0444, 5303 988 0269, 5303 988 0270, 5303 988 0293, 5303 988 0308, 5303 988 0314, 5303 988 0366, 5303 988 0418, 5303 988 0444, 5303-988-0444 OE number: CB5Z6K682H, CB5E6K682AC, CB5E6K682BA, CB5E6K682BB, CB5E6K682BC, CB5E6K682CC, CB5E6K682BE, CB5E6K682BF Description: Ford Focus, Galaxy, Kuga, Mondeo, S-max, Explorer, Edge, Lincoln MKZ Manufacturer: 53039700270, 5303-970-0270 CHRA: 53037100565 (5303-710-0565)(1302003940) Turbo Model: K03-2080DCB5.88CCAXX, K03 Engine: 2.0 EcoBoost, SCTi Displacement: 2.0L, 2000 ccm, 4 Cylinders KW: 177 kW/240 HP RPM Max: 5000 Fuel: Gasoline Bearing Housing: 53031504505 (Water Cooled)(1302003461 1900011235I) Turbine Wheel: 53031208514 (53031208515)(Ind. 44.95 mm Exd. 40.23 mm Trm 7.62 9 Blades)(1302003447 1100016434) Comp. Wheel: 53041232241 (53041232223)(Ind. 62.65 mm Exd. 94.88 mm 7+7 Blades)(1302003416 1200016319) Back plate: 53041505709 (53041505701)(1302003305 1300016042) Heat shield: 53031652009 (53031652015 53031652021 53031652022)(1302003343 2030016037) Repair Kit: 53037110000 (Major)(Single Feed)(Inc. Trust Parts)(1302003754 5000040005) Applications: For Ford Edge with 2.0 EcoBoost Engine 2001-2017 For Ford Focus with 2.0 EcoBoost Engine 2001-2017 For Ford Fusion with 2.0 EcoBoost Engine 2001-2017 For Ford Passenger Car with 2.0 EcoBoost Engine 2001-2017 |
| EPAA33G017 | GT3582 GT3582R GTX3582R GTX3582R-T4 | Type: Performance turbocharger Turbo Model: GT3582 GT3582R GTX3582R Compressor Housing: A/R.70 customization color or Anti-surge Compressor Wheell: Billet wheel 6+6 blades Turbine Housing: A/R.63, A/R.82, A/R1.06 or others Turbine Housing Material: Si-Mo Ductile Iron Turbine Wheel Material: 42CrMoA Turbine Shaft Material: k18 Bearing: Dual Ceramic turbo Ball bearing peek cage Configurations Deatails of Performance Turbocharger:GTX3582R-T4 (Model for Ref. only) Compressor Housing: Black spraying with static With Golden Anti-surge insert CORE: same as original Garrett data of GT3582R Cooled: Water cooled and oil cooled Turbine Housing: T4 Flange(Inlet) / V-Band(Outlet) Bearing: DUAL CERAMIC BALL BEARING Back Plate: Self-color or Golden treating Compressor Wheel: Billet Wheel 6+6 Blades or 11 blades, sIiver, red, blue, gold, purple... Nut: Normal nut, or Natural color Bullet |
| EPAA33G018 | GT35 TO4E T04E GT35 T66 T4 GT30 | Description： Tuning Turbocharger Compressor Housing: A/R.70 can be customized color, polish machining, anti-surge type. Turbo Model: TO4E T04E GT35 T66 T4 GT30(you could chose) Compressor Whell: Size can be customized, Material can be made Billet or Aluminum cast. Turbine Housing: A/R.68, A/R.81, A/R.82, A/R.84, A/R1.00, A/R1.15, A/R1.32 Turbine Wheel: Accepted customization size(Supply sample or drawings) Cooled: Oil or and Water cooled Wheel Nut: Buooet or General Backing Plate: Plain or Color by anodizing You also can print your own LOGO on your turbochargers by Laser. |
| EPAA33G019 | GT3582R GT35R GT35 BB | Model: GT35R GT35 BB 63 GT3582R Gen1 Gen 2 Compressor Housing A/R: 0.7 Turbine Housing A/R: 0.63 / 0.82 / 1.06 Turbine housing material Si-mo Nodular iron cast, or heat-resistance stainless steel, different price Cooled: Water & Oil cooled Bearing: Ceramics Dual Ball bearing Inlet / Outlet Flange Hot: T3/4 Bolt, T3/V Band, T4/V Band Compressor Wheel: Aluminum cast alloy, Billet wheel, Color Billet wheel |
| EPAA33G020 | GT3582R GT35R | Model: GT3582R GT35R GT35 BB Gen1 Gen 2 Compressor Housing A/R: 0.7 Turbine Housing A/R: 0.63 / 0.82 / 1.06 Turbine housing material Si-mo Nodular iron cast, or heat-resistance stainless steel, different price Cooled: Water & Oil cooled Bearing: Ceramics Dual Ball bearing Inlet / Outlet Flange Hot: T3/4 Bolt, T3/V Band, T4/V Band Compressor Wheel: Aluminum cast alloy, Billet wheel, Color Billet wheel |
| EPAA33G021 | GT3582 journal bearing turbo | Description Performance turbocharger Turbo Model GT35 GT3582 GT3582R GTX3582R Comp. Housing A/R.70 customization color or anti-surge Comp. Wheel customization material or size Exhaust Housing A/R.63, A/R.82 A/R1.06 select inlet/outlet flange and material Inlet/outlet flange T3 or T4 / 4 Bolt or V Band Turbine Wheel customization material or size Cooled Water & oil cooled Wheel Nut General or color bullet Backing Plate Plain or Color by anodizing Bearing Journal bearing or ball bearing, need to check |
| EPAA33G022 | GTX3582R GT3582R Supercore | Model: GTX3582R GT3582R Gen1 Gen 2 Compressor Housing A/R: 0.7 Turbine Housing A/R: Can fit 0.63 / 0.82 / 1.06 but without turbine housing. Turbine housing material Si-mo Nodular iron cast, or heat-resistance stainless steel, different price Cooled: Water & Oil cooled Bearing: Ceramics Dual Ball bearing Inlet / Outlet Flange Hot: Cand fit T3/4 Bolt, T3/V Band, T4/V Band Compressor Wheel: Aluminum cast alloy, Billet wheel, Color Billet wheel |
| EPAA33G023 | 7875 Turbo | Description: Performance turbocharger Turbo Model: 7875 type Compressor housing: 0.75 A/R Compressor wheel: 6+6 Blades Turbine Housing: 1.32 A/R 0.81, 0.96 Inlet/outlet flange: T4 flange / V Band Cooled: Water & Oil cooled Wheel Nut: General or Golden color bullet Backing Plate: Plain or Color by anodizing |
| EPAA33G024 | GT35 TO4E T04E GT35 T66 T4 GT30 | Compressor Housing: A/R.70 customized, T51R modified rod, anti-surge can be customized color, polish machining, anti-surge type. Turbo Model: GT35 TO4E T04E GT35 T66 T4 GT30 Compressor Whell: Size can be customized, Material can be made Billet or Aluminum cast. Turbine Housing: A/R.63, A/R.82, A/R1.06 A/R.68, A/R.81, A/R.82, A/R.84, A/R1.00, A/R1.15, A/R1.32 Turbine Wheel: Accepted customization size(Supply sample or drawings) Cooled: Oil or and Water cooled Wheel Nut: Buooet or General Backing Plate: Plain or Color by anodizing |
| EPAA33G025 | TO4Z | Model: TO4Z Compressor Housing : A/R.70 Compressor Wheel(in/out): 61.4-82 Turbine Housing : A/R1.00 Turbine Wheel(out/in): 64.5-73.8 Cooled: Water&Oil cooled Bearing: Journal bearing Thrust bearing: 360° Actuator: External Inlet :T4 flange Outlet :V band |

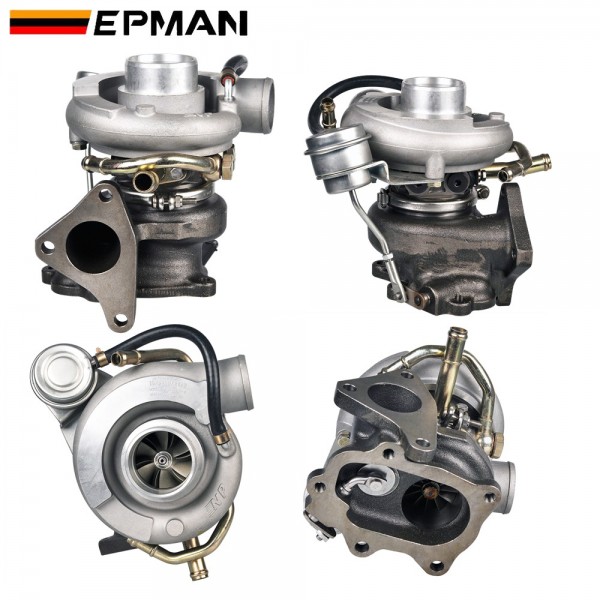

| EPAA33G026 | TD05H 20G | Model: TD05H 20G Cooled: Water&Oil cooled Bearing: Journal bearing Thrust bearing: 360° Actuator: Internal westergate Exhaust Inlet : 5 bolts Exhaust Outlet :3 bolts Application: Subaru |
| EPAA33G027 | GTX3582R GT3582R | Model: GTX3582R GT3582R Gen1 Gen 2 Compressor Housing A/R: 0.7 Turbine Housing A/R: 0.63 / 0.82 / 1.06 Turbine housing material Si-mo Nodular iron cast, or heat-resistance stainless steel, different price Cooled: Water & Oil cooled Bearing: Ceramics Dual Ball bearing Inlet / Outlet Flange Hot: T3/4 Bolt, T3/V Band, T4/V Band Compressor Wheel: Aluminum cast alloy, Billet wheel, Color Billet wheel |
| EPAA33G028 | GT2867R wastegate internal | Configurations Deatails of Performance Turbocharger: GT2867RR Actuator (Model for Ref. only) Compressor Housing: A/R.60 Cooled: Water cooled and oil cooled Turbine Housing: A/R.64, A/R.86 T25 Flange(Inlet) / 5 bolt(Outlet) Bearing: Journal bearing, or Dual ball bearing Compressor Wheel: Aluminum alloy or Billet Wheel |
| EPAA33G029 | TO4E T3 T3-B | Model:TO4E T3 T3-B Compressor Housing : A/R.50 Compressor Wheel(in/out): 54.3-82mm Turbine Housing : A/R.48 Turbine Wheel(out/in): 49-65mm Cooled: Oil cooled Bearing: Journal bearing Thrust bearing: 360° Actuator: External Inlet : T3 flange Outlet : 4 Bolt |
| EPAA33G030 | TO4E T4 T4-68 | Model: TO4E T4 T4-68 Compressor Housing : A/R.70(T04E) Turbine Housing : A/R.68 V Band Cooled: Oil only, or Water&Oil cooled Bearing: Journal bearing Thrust bearing: 360° Actuator: External Inlet :T4 flange Outlet :V band |
| EPAA33G031 | GT35-4 | Direct Manufacture GT35-4 Performance Turbo Compressor Housing A/R.70 double inlet Turbine Housing A/R.63 Exaust side outlet 5 Bolts T3 Flange hot side inlet |
| EPAA33G032 | T51R | Configurations Deatails of Performance Turbocharger: Compressor Housing : T51R Compressor Wheel(in/out): 76.5-102.4 billet Turbine Housing : A/R1.00-2V Turbine Wheel(out/in): 71.4-82.0 Cooled: Water&Oil cooled Bearing: Journal bearing only Thrust bearing: 360° Actuator: External Inlet : V-Band Outlet : V-Band |
| EPAA33G033 | T3T4 | Model: GT3540 (Model for Ref. only) Compressor Housing : A/R.50 Turbine Housing : KKK Cooled: Water&Oil cooled Bearing: Journal bearing Thrust bearing: 360° Actuator : External Inlet :T3 flange divided Outlet :4 Bolt |
| EPAA33G034 | TO4E T04E GT35 T66 T4 GT30 | Compressor Housing: A/R.70 can be customized color, polish machining, anti-surge type. Turbo Model: TO4E T04E GT35 T66 T4 GT30 Compressor Whell: Size can be customized, Material can be made Billet or Aluminum cast. Turbine Housing: A/R.68, A/R.81, A/R.82, A/R.84, A/R1.00, A/R1.15, A/R1.32 Turbine Wheel: Accepted customization size(Supply sample or drawings) Cooled: Oil or and Water cooled Wheel Nut: Bullet or General Backing Plate: Plain or Color by anodizing |
| EPAA33G035 | GT42 GT4202 GT4294 | Part No.: 731376-5002 Compressor Housing : A/R.60 Compressor Wheel(in/out): aluminum alloy or customize billet Turbine Housing : A/R1.05 Cooled: Oil only Bearing: Journal bearing Thrust bearing: 360° Actuator:External Inlet : T4 flange divided Outlet : 6 Bolt |

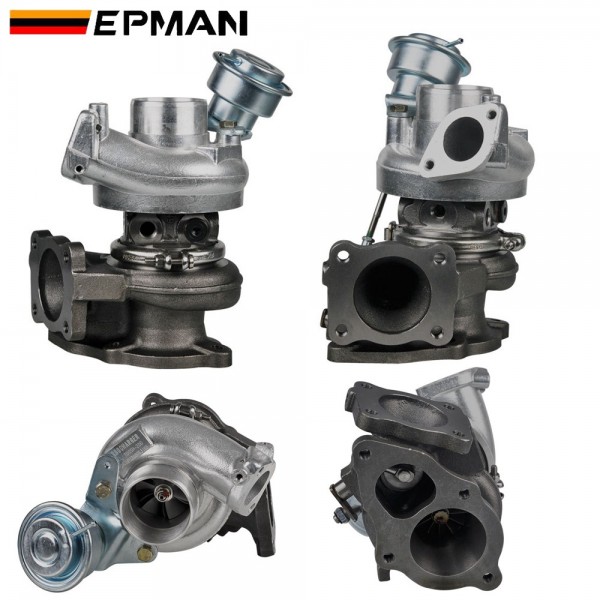

| EPAA33G036 | EJ20, EJ25, 4G63 | Compressor Wheel(in/out): 52.56-68mm Turbine Wheel(out/in): 56-65mm Cooled: Water&Oil cooled Bearing: Journal bearing Thrust bearing: 360° Actuator: Internal |
| EPAA33G037 | GT2871 wastegate internal | Configurations Deatails of Performance Turbocharger: GT2871 GT2871R Actuator (Model for Ref. only) Compressor Housing: A/R.60 Cooled: Water cooled and oil cooled Turbine Housing: A/R.64, A/R.86 T25 Flange(Inlet) / 5 bolt(Outlet) Bearing: Journal bearing, or Dual ball bearing Compressor Wheel: Aluminum alloy or Billet Wheel OE NO. 472560-15, 771847-1, 780371-2, 707160-10, 743347-1, 743347-3, 743347-2, 743347-4 |
| EPAA33G038 | GT3582-18 | Type: Performance turbocharger OE NO.： GT3582, GT35, T3 Turbo Model： GT3582-18 Compressor housing： T04EA/R.70 Anti surge Compressor wheel： billet wheel 61.4/82mm Turbine housing： A/R.82 Turbine wheel： 62.3/68mm Turbine wheel Blades： 10 blades Inlet： T3 flange Outlet： 4 Bolt Cooled； water & oil cooled |
| EPAA33G039 | WGT30-4 | Type: Performance turbocharger OE NO.： GT30, WGT30, T3T4 Turbo Model： WGT30-4 Compressor housing： A/R.70 Anti Surge 61.4/82mm Turbone housing： A/R.48 Turbine wheel： 49/65mm Cooled： Water & Oil cooled Bearing： Journal bearing Actuator： Internal Inlet： T3 flange Outlet： V-BAND-79mm |
| EPAA33G040 | T3 T3-6082 | Type: Performance turbocharger Model: T3 -6082 (Model for Ref. only) Compressor Housing : A/R.60 Compressor Wheel(in/out): 54.13-70mm Turbine Housing : A/R.82 Turbine Wheel(out/in): 56-65.15mm Cooled: Oil cooled only Bearing: Journal bearing Thrust bearing: 360° Actuator: External Inlet : T3 flange Outlet : V BAND |
| EPAA33G041 | GT3582 wastegate internal | Type: Performance turbocharger Configurations Deatails of Performance Turbocharger: GT3582- T3 actuator (Model for Ref. only) Turbo Model：GT3582 wastegate internal Compressor Housing: A/R.50 General nut or Golden nut CORE: same as original Garrett data of GT3582 Cooled: Water cooled and oil cooled Turbine Housing: T3 Flange(Inlet) / 5 bolt(Outlet)Bearing: Journal bearing Back Plate: Silver or Color treating Compressor Wheel: Aluminum alloy or Billet Wheel With gaskets |
| EPAA33G042 | GT3582-T4 | Turbo Model GT3582-T4 Compressor housing T04EA/R.70 Compressor wheel Billet 6+6 blades wheel 61.4/82mm Cooled Water & Oil Cooled Turbine housing A/R.82,T4,V-BAND Turbine wheel 62.3/68mm Bearing Dual Ball Bearing Back Plate: Plain or color by anodizing Compressor NUT: General or Bullet |
| EPAA33G043 | T78 | Type: Performance turbocharger OE NO. 49174-00890, T78 Car Model Universal Turbo Model T78 Compressor Billet wheel 63/92mm Turbine wheel 72.5/84.5mm Cooled Type Oil Cooled Bearing Journal bearingc Inlet T4 flange twohole Outlet V BAND-97mm |
| EPAA33G044 | GT45R | Description： Tuning turbocharger Turbo Model： GT45R Comp. Housing： A/R.70 anti-surged Comp. Wheel： Aluminum alloy, or 5-axis Billet Exhaust Housing： A/R1.00 Inlet/outlet flange： T4 Split hole / V-Band Turbine Wheel： customization material or size Cooled： Water & Oil Cooled Wheel Nut： General Backing Plate： Plain silver color |
| EPAA33G045 | T4 Turbo | Compressor Housing: A/R.70 can be customized color, polish machining, anti-surge type. Turbo Model: TO4E T04E GT35 T66 T4 GT30 Compressor Whell: Size can be customized, Material can be made Billet or Aluminum cast. Turbine Housing: A/R.68, A/R.81, A/R.82, A/R.84, A/R1.00, A/R1.15, A/R1.32 Turbine Wheel: Accepted customization size(Supply sample or drawings) Cooled: Oil or and Water cooled Wheel Nut: Buooet or General Backing Plate: Plain or Color by anodizing |
| EPAA33G046 | GT35 turbo | Configurations Deatails of Performance Turbocharger: GT35 (Model for Ref. only) Compressor Housing:A/R.70 T04E TO4E With Golden Anti-surge CORE: same as original Garrett data of GT35 Cooled: Water cooled and oil cooled Turbine Housing: T4 Flange Split(Inlet) / V-Band(Outlet) Bearing: Floating bearing Back Plate: Self-color or Golden treating Compressor Wheel: Aluminum alloy Wheel 6+6 Blades or 11 blades Nut: Natural color Bullet |
| EPAA33G047 | GTx3584 GT3584R GTX3584R | Description： Performance turbocharger Turbo Model： GTx3584 GT3584R GTX3584R Comp. Housing： A/R.70 customization color or anti-surge Comp. Wheel： customization material or size Billet 11 blades or Aluminum alloy Exhaust Housing： A/R.63, A/R.82 A/R1.06 select inlet/outlet flange and material Inlet/outlet flange： T3 or T4 / 4 Bolt or V Band Turbine Wheel： customization material or size Cooled： Water & oil cooled Wheel Nut： General or color bullet Backing Plate： Plain or Color by anodizing |
| EPAA33G048 | T4 Turbo T4R T4-8096 | Description： Tuning turbocharger Turbo Model： T4 Turbo T4R T4-8096 Comp. Housing： A/R.80 customization color Comp. Wheel： customization material or size Exhaust Housing： A/R.96, A/R.68, A/R.81, A/R1.00, A/R1.15, A/R1.32 Inlet/outlet flange： T4 / V Band Turbine Wheel： customization material or size Cooled： Water & or oil cooled Wheel Nut： General o Backing Plate： Plain or Color by anodizing |
| EPAA33G049 | TD05 20G | Compressor Housing : Casting Aluminum Alloy Compressor Wheel(in/out): 52.56-68 Turbine Housing : Simo Nodular cast iron Turbine Wheel(out/in): 48.85-55.8 Cooled: Water&Oil cooled Bearing: Journal bearing Thrust bearing: 360° Actuator: Internal inlet/outlet Flange : 3 Bolt/5 Bolt |
| EPAA33G050 | TO4E T04E GT35 T66 GT30 | Compressor Housing: A/R.70 can be customized color, polish machining, anti-surge type. Turbo Model: TO4E T04E GT35 T66 T4 GT30 Compressor Whell: Size can be customized, Material can be made Billet or Aluminum cast. Turbine Housing: A/R.68, A/R.81, A/R.82, A/R.84, A/R1.00, A/R1.15, A/R1.32 Turbine Wheel: Accepted customization size(Supply sample or drawings) Cooled: Oil or and Water cooled Wheel Nut: Buooet or General Backing Plate: Plain or Color by anodizing You also can print your own LOGO on your turbochargers by Laser. |
| EPAA33G051 | GT35 GT3582 GT3582R GTX3582R-T3 | Description: Performance turbocharger Turbo Model: GT35 GT3582 GT3582R GTX3582R Comp. Housing: A/R.70 customization color or anti-surge Comp. Wheel: customization material or size Exhaust Housing: A/R.63, A/R.82 A/R1.06 select inlet/outlet flange and material Inlet/outlet flange: T3 / 4 bolt can be customized Turbine Wheel: customization size Shaft K18 Cooled: Water & oil cooled Wheel Nut: General or color bullet Backing Plate: Plain or Color by anodizing |
| EPAA33G052 | GT35 GT3582R Dual Ball Bearing | Item: GT35 GT3582R Dual Ball Bearing Turbocharger Compressor Housing: A/R.70 Anti-surge Compressor Wheel: Aluminum alloy, size can be customized, or 5 anxis billet and colored Exhaust housing: A/R.63, A/R.82, A/R1.06 Turbine Wheel: Size can be customized Turbine Shaft: K18 Inlet/ Outlet Flange: T3 Flange / 4 bolt Cooled: Water& Oil cooled |
| EPAA33G053 | GTX3584R | GTX3584R GT3584R Turbocharger with Ceramic Dual Ball Bearing T3 or T4 flange High quality Billet Compressor Wheel (11 blades 64mm-84mm) Compressor housing：A/R.70 Turbine Housing：A/R.82 Turbo Model: GTX3584R Bearing: Dual Ball Bearing Compressor Wheel: Billet Wheel Compressor Wheel Dia: 64mm-84mm Compressor Wheel Blade: 11 blades Cooled: Water&Oil cooled Inlet Flange: T3 or T4 flange Exhaust: V-Band or 4 Bolt |
