You are buying on 100% Brand New of:
EPMAN 100PCS/Carton Brass Barbed Fitting Straight T Type Tee Y type Tee Cross Pneumatic & Plumbing for Air and Water Hose Quick Fitting Connectors EPAA32G05
**** Sold in Carton, Quantity per carton: 100 PCS ****
Product Features:
Premium Solid Brass: Made of premium brass for excellent corrosion resistance and low magnetic permeability.
Deep Sharp Barbs: Specially engineered barbs create a tight, secure seal on flexible and semi-rigid hoses.
Four Structure Options: Offers Straight, Y Type Tee, T Type Tee, and Cross to meet diverse piping layout needs.
Universal Fluid Compatibility: Highly versatile adapter suitable for air lines, domestic water systems, and fuel piping.
Withstands working pressure up to 0.9MPa (130PSI), meets the operation requirements of most industrial pneumatic tools.
Suitable for all kinds of connections in compressed air systems, such as air compressors and pneumatic tools, ensuring efficient and air-tight connections.
Multiple specification options available to match different air tube sizes and thread standards, covering most common pneumatic application scenarios As a general pneumatic connection accessory, this quick connector balances performance and cost, delivering stable leak-proof connection for long-term use, and is trusted by industrial and DIY users worldwide.
Specification:
Product Name:Brass Barb Fitting
Material:Solid Brass

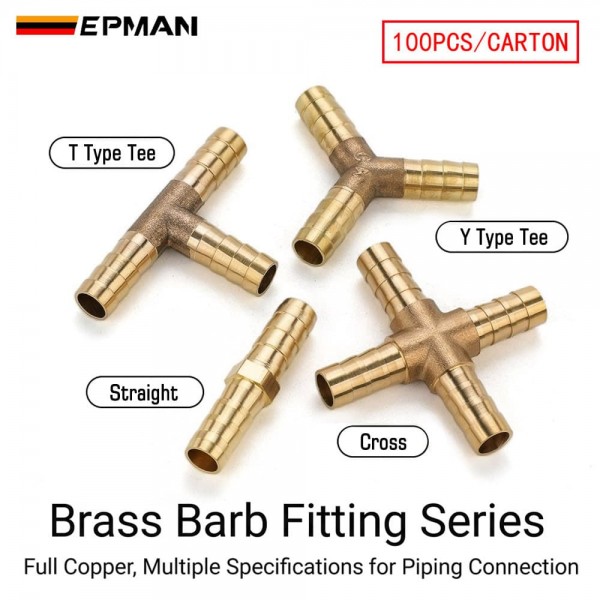

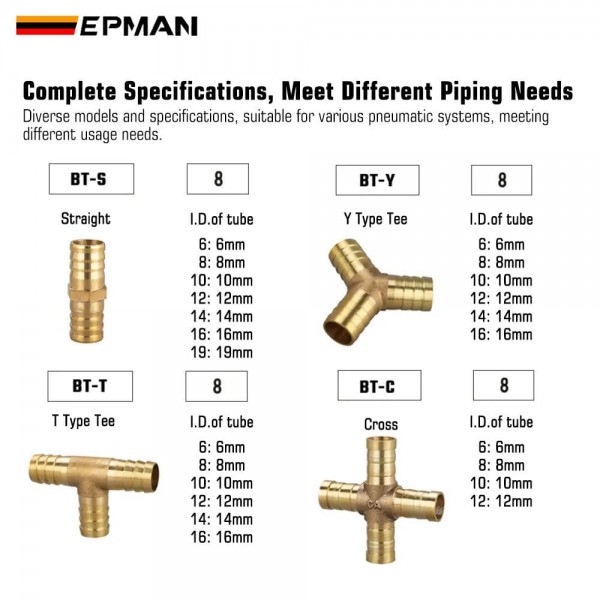

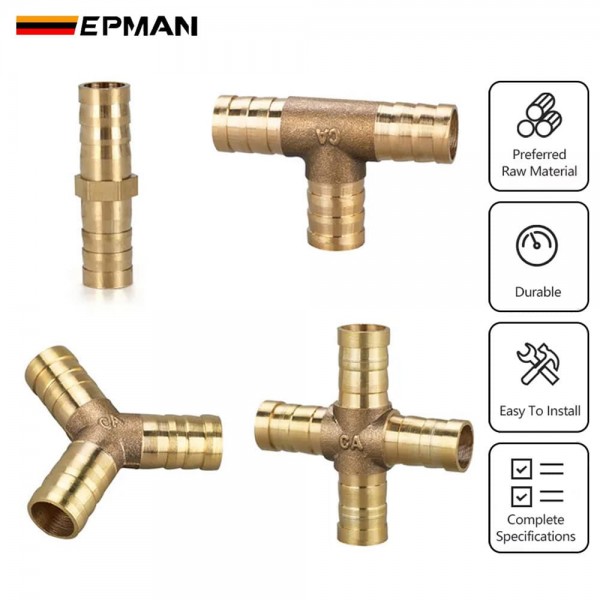

Available Models: BT-S (Straight), BT-Y (Y Type Tee), BT-T (T Type Tee), BT-C (Cross)
Supported Tube I.D.: 6mm, 8mm, 10mm, 12mm, 14mm, 16mm, 19mm
Corrosion Resistance: Anti-oxidation gold-tone brass finish
Connection Type: Equal barbed ports on all ends
Compatibility: Works with rubber, PU, PVC, and silicone hoses
Manufacturing Technics: CNC Precision Machined Forged Brass

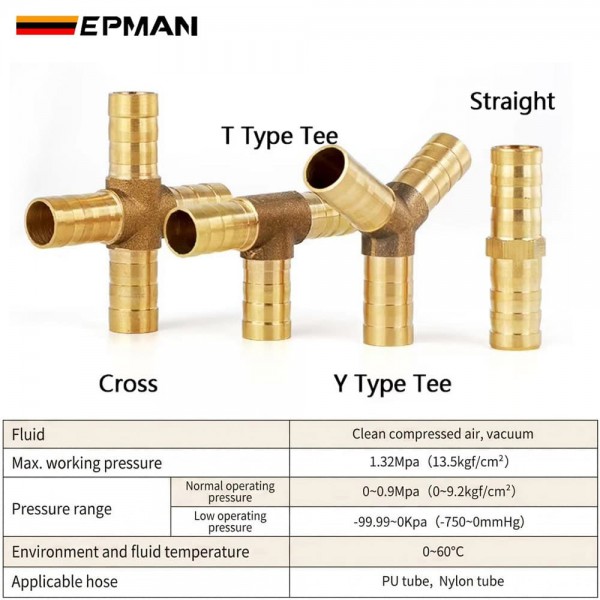

Working Fluid: Clean Compressed Air, Vacuum
Max Operating Pressure: 1.32Mpa (13.5kgf/cm²)
Normal Working Pressure: 0-0.9Mpa (0-9.2kgf/cm²)
Operating Temperature Range: 0 - 60°C (32 - 140°F)
Application:
Industrial Pneumatics: Perfect for automation factory air supply and compressor line connections.
Automotive Maintenance: Widely used in garage fuel systems, oil lines, and coolant tube mending.
Home & Garden Plumbing: Ideal for water hoses, irrigation systems, and household fuel gas piping.
Package Included:
100 x Brass Hose Barb Fittings (Same Model & Size per Bulk Carton)
FAQ:
Q1: Do these fittings require hose clamps for installation?
A1: Yes, we strongly recommend using hose clamps or crimp sleeves to guarantee a 100% leak-proof seal.
Q2: Can these brass fittings be used for drinking water systems?
A2: These industrial-grade fittings are primary recommended for pneumatic, fuel, gas, and non-potable water systems.
Q3: What does the size (e.g., 8mm) refer to?
A3: The size indicates the Outer Diameter (OD) of the barb, which matches the Inner Diameter (ID) of your flexible tube.
Q4: What is the benefit of a Y type tee joint (BT-Y) compared to a T type tee (BT-T)?
A4: The Y type tee joint splitter provides smoother flow splitting with less fluid turbulence compared to a 90-degree T type tee joint.
WHOLESALE & OEM SERVICES
Wholesale MOQ? Custom finishes? Contact us for OEM/ODM solutions, bulk pricing & sample processing.
Our Factory Specializes In :
• CNC Precision Manufacturing • Custom Design & Development
• Private Label Solutions • Bulk Order Processing
• Sample Production & Testing
BULK ORDER BENEFITS :
• Competitive Wholesale Pricing • Custom Branding Options
• Priority Production Scheduling • Dedicated Account Management
• Flexible Payment Terms
